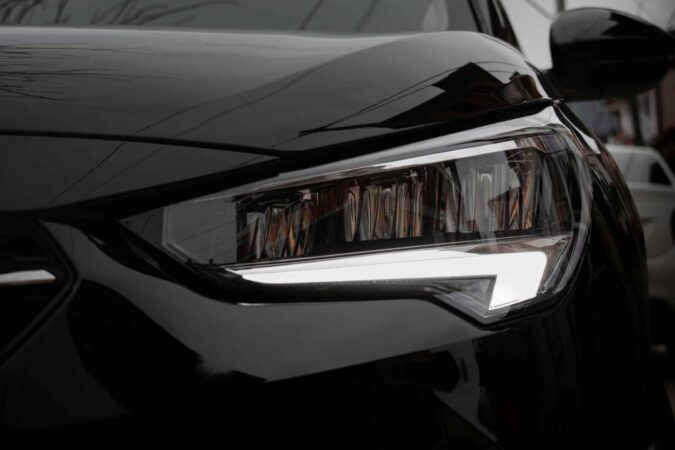

Reimagining headlights as smart, stylish, and sustainable systems, LED pixel lighting is transforming how vehicles see and are seen, blending safety, design, and cutting-edge control.
An LED pixel light controller is an electronic device or system that manages and synchronises the colour, brightness, and pattern of LED pixels in a vehicle’s lighting array. Each LED pixel in these arrays can be individually controlled to display specific colours and effects, enabling complex lighting designs. The controller sends signals to the pixels based on predefined sequences or real-time control via software or apps, allowing for animations, fades, patterns, and colour changes across the array.
These controllers are typically used with addressable LEDs, where each pixel has its own address and can respond independently. They may support various control protocols, such as DMX and SPI, and are compatible with LED types like WS2812 and APA102, which are commonly used in pixel lighting systems. Advanced controllers can be synchronised with music, videos, or other inputs for interactive lighting effects.
The rise of intelligent and stylish automotive lighting
With the integration of light-emitting diode (LED) technology, lighting has evolved from a basic, functional element to a distinctive feature with high-value potential in the automotive industry. Besides the original functional lighting, new styling illumination is emerging, such as dynamic lighting, animation, and logo illumination. Additional lighting modules, such as laser boosters or digital micromirror devices (DMDs), can significantly increase lighting distance, up to 600m, or deliver new functions thanks to their high resolution.
The integration of new solid-state lighting (SSL) technologies is transforming automotive front lighting and its applications, offering increased design flexibility, enhanced efficacy, and intelligent functionalities.
LEDs are rapidly gaining popularity as their cost decreases and efficiency, luminance, and package size improve. For example, full LED headlamps were first commercialised in 2008. They entered the C-segment medium-size vehicle market in 2012 and are now being commercialised in emerging markets. Nowadays, nearly all car makers and Tier-1 part suppliers have developed full LED-based headlamp systems.
Current benefits of pixel LED and adaptive lighting systems
- Enhanced visibility: Pixel LED headlights provide brighter and clearer illumination, improving nighttime driving and visibility in low-light conditions.
- Adaptive lighting: These lights can adjust their brightness and focus based on driving conditions, helping to avoid glare for oncoming drivers and improving road safety.
- Energy efficiency: LEDs consume less power compared to traditional halogen or HID lights, which can extend battery life and increase fuel efficiency in electric and hybrid vehicles.
- Longer lifespan: LED technology generally offers a longer lifespan, reducing the need for frequent replacements.
- Design flexibility: Pixel LEDs enable intricate headlight designs, allowing for sleeker aesthetics and the potential for unique light signatures for different vehicle models.
- Smart features: Pixel LEDs can integrate with advanced driver-assistance systems (ADAS), enabling features like automatic high beam adjustment, curve lighting, and lane guidance.
- Environmentally friendly: LEDs are more eco-friendly as they use less energy and contain no harmful substances like mercury.
Challenges in adoption and implementation
- High cost: Pixel LED headlights are more expensive to manufacture and replace, making them a premium feature that can increase overall vehicle cost.
- Complexity: The technology is complex, requiring specialised maintenance and expertise, which can lead to higher repair costs if issues arise.
- Heat management: While LEDs consume less power, they still generate heat, which requires effective heat management to prevent damage to the light or surrounding components.
- Potential for glare: Although adaptive features help, if not properly calibrated, pixel LED headlights can cause glare for other drivers, potentially leading to road hazards.
- Limited availability: Pixel LED headlights are often limited to high-end vehicles or specific models, restricting availability for budget-friendly vehicles.
- Susceptible to moisture: Like other advanced lighting technologies, pixel LEDs are susceptible to condensation and moisture damage if the sealing isn’t perfect.
- Regulatory limitations: Some regions may have regulatory restrictions on adaptive or high-intensity headlights, which could limit the full functionality of pixel LEDs.
Automotive LED lighting, a mutating industry
The automotive industry is evolving rapidly, with LED pixel lighting and adaptive driving beam (ADB) systems at the forefront of lighting technology. LED pixel lighting uses clusters of independently controlled LEDs to create dynamic lighting patterns that enhance visibility while minimising glare for other drivers. ADB systems, enhanced by front-facing cameras and AI, adjust lighting in real-time based on road conditions and the presence of oncoming traffic. This adaptability allows for optimised visibility and marks a shift towards intelligent lighting that responds to the driver’s environment.
Advanced front lighting systems (AFLs) take this innovation further, combining LED lighting with micro-electro-mechanical systems (MEMS), laser scanners, and digital micromirror devices (DMDs) for precision light control. These components enable the lighting to adapt based on speed, steering angle, and weather conditions. The benefits of these technologies extend beyond safety, offering better energy efficiency, reduced driver fatigue, and unique aesthetic appeal. Together, LED pixel lighting and adaptive systems illustrate how the industry is moving towards more responsive, efficient, and intelligent automotive lighting solutions.
In conclusion, LED pixel light controllers represent a pivotal advancement in automotive lighting, offering precise, real-time adaptability under diverse driving conditions. By integrating with advanced sensors and AI, they enhance the overall driving experience while supporting road safety and energy efficiency. This technology positions LED pixel lighting as a sustainable and intelligent solution for the future of automotive design.
References: Pixel LED Headlights: High Definition Technology Enables New Driving Experiences by Martin Leo
Author: Vinayak Ramachandra Adkoli. The author holds a BE degree in Industrial Production and has been a lecturer in three different polytechnics for ten years. He is also a freelance writer and cartoonist.
